Femtosecond Pulse Pickers Pismo Questions and Answers

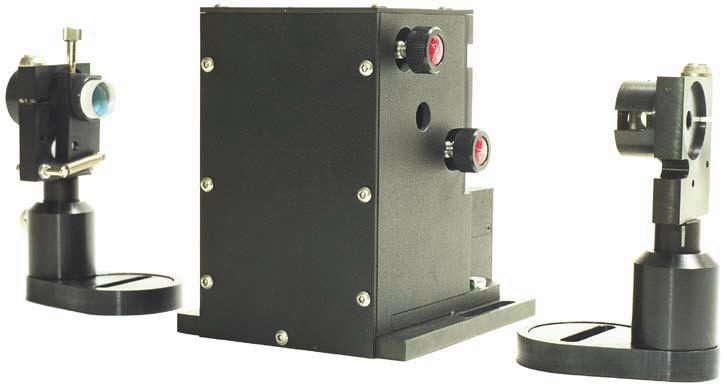

Pismo pulse picker
The Pismo pulse picker systems is as a pulse gating system that lets single pulses or group of subsequent pulses from a femtosecond or picosecond pulse train pass through the system, and stops other radiation. The system is perfectly suitable for most commercial femtosecond oscillators and amplifiers. The system can pick either single pulses, shoot bursts (patterns of single pulses) or pick group of subsequent pulses (wider square-shaped HV pulse modification). HV pulse duration (i.e. gate open time) is 10 ns in the default Pismo 8/1 model, but can be customized from 3 to 1250 ns upon request or made variable. The frequency of the picked pulses starts with single shot to 1 kHz for the basic model, and goes up to 100 kHz for the most advanced one.
The Pockels cell is supplied with a control unit that is capable of synching to the optical pulse train via a built-in photodetector unit, while electric trigger signal is also accepted. Two additional delay channels are available for synching of other equipment to the pulse picker operation. Moreover, USB connectivity and LabView-compatible drivers save a great deal of your time on storing and recalling presets, and setting up some automated experimental setups. One control unit is capable of driving of up to 3 Pockels cells, and this comes handy in complex setups or contrast-improving schemes. The system can also be modified to supply two HV pulses to one Pockels cell unit, making it a 2-channel pulse picker system. This may be essential for injection/ejection purposes when building a regenerative or multipass amplifier system.




Pismo Pulse Pickers brochure - Pismo 8-1-1 manual - Del Mar Photonics - request a quote

> (1) Does the unit include the two polarizers and the associated optical mounts, just like the picture shown in the brochure?

The Pulse Picker system include two Glan prisms with mounts, Pockels Cell based on DKDP crystal, control and synchronization unit, fiber and cables.

> (2) What is the optical aperture of this device? The beam size of our laser output is about 2 cm. Is it large enough to let the beam  through without clipping?

Standard clear aperture of Pockels Cell is 5 mm in diameter, but we can made DKDP crystal with 9 mm clear aperture. The 2 cm beam size is very large for Pismo. You will need to reduce beam diameter using mirror telescope, for example.

> (3) What is the damage threshold of this device? Will this device cause serious dispersion problem to our 100-fs laser pulses?

The damage threshold of optical components is enough for working with your source (energy - 3 mJ/pulse, duration - 100 fs, BUT beam diameter - 8 mm). After Pulse Picker system the pulse will be chirped and has duration about 110-120 fs. But you can compensate this chirp increasing the distance between gratings in compressor of your laser system.

> (4) Since our laser wavelength is at 800 nm with a spectral width about 15 nm, what is the operating voltage for us to choose?

The half-wave voltage at 800 nm is about 8 kV for DKDP crystal.

> (5) Based on the standard model provided in your e-mail, it seems that either Pismo 55/1 or Pismo 88/1 is suitable to our applications. Both
> models provides the ability to vary the output frequency from 1 Hz to 1 kHz and variable output pulse duration from 10 to 1250 ns. Of
> course, the operating voltage is dependent on our wavelength. Please help me to identify the right model.

You need the Pismo 8/1 pulse picker. This is model with HV shutter that generate the HV pulse with parameters as following: amplitude -
5-9 kV (adjustable); duration - 10 ns at level 10% of maximum (fixed); repetition rate - 0-1 kHz (adjustable). This is our standard model for single pulse selection with repetition rate up to 1 kHz from femtosecond pulse train (1-80 MHz) and for improvement of contrast ratio after regenerative amplifiers. The Pismo 88/1 is more expensive system. And if you will use pulse picker only for lower repetition rate and for contrast ratio improvement you don't need variable HV pulse duration.
The manual for Pismo 8/1 is attached.
Feel free to ask any questions I would be pleased to to give you a detailed answer.

Regards,
Sergey Tenyakov

Answers was prepared by Project Leader on Amplified Femtosecond Ti:Sapphire Systems Sergey Tenyakov

Project Leader on Amplified Femtosecond Ti:Sapphire Systems Sergey Tenyakov



Project Leader on Amplified Femtosecond Ti:Sapphire Systems Sergey Tenyakov optimizing Ti:Sapphire Multipass Amplifier

Complete list of standard Pismo Pulse Pickers:

7

Pulse Pickers Pismo

7.1

Pismo 8/1. One-channel, 8kV/1Hz-1kHz  pulse picker with  synchronization electronics

7.2

Pismo 8/10. One-channel, 8kV/500Hz-10kHz  pulse picker with  synchronization electronics

7.3

Pismo 8/25. One-channel, 8kV/500Hz-25kHz  pulse picker with  synchronization electronics

7.4

Pismo 8/40. One-channel, 8kV/500Hz-40kHz  pulse picker with  synchronization electronics



Pismo 8/1 (DKDP 10x10x25 mm3)



Pismo 88/1 (DKDP 10x10x25 mm3)



Pismo 88/1 (BBO 4x4x20 mm3)

7.5

Pismo 12/1. One-channel,12kV/1Hz-1kHz  pulse picker with  synchronization electronics

7.6

Pismo 12/10. One-channel 12kV/500Hz-10kHz  pulse picker with  synchronization electronics

7.7

Second channel for pulse picker Pismo 8/1

7.8

Second channel for pulse picker Pismo 8/10 ; Pismo 12/1

7.9

Second channel for pulse picker Pismo 8/25 ; Pismo 12/10

7.10

Pismo 8/1-2. Two-channel, one-cell 8kV/1Hz-1kHz  pulse picker with  synchronization electronics

7.11

Pismo 55/1. 5kV/1Hz-1kHz /variable 10-1250ns flat top pulse pulse picker with  synchronization electronics

7.12

Pismo 88/1. 8kV/1Hz-1kHz /variable 10-1250ns flat top pulse picker with  synchronization electronics

7.13

Pismo 8C/1. 8kV/1Hz-1kHz / not variable (constant duration, custom request) flat top pulse pulse picker with  synchronization electronics

7.14

Pismo 58P/1. 5kV/1Hz-1kHz /10-1000ns (“zero” square pulse with  “prepulse”) pulse picker with  synchronization electronics

7.xx Custom Pulse Picker - please  send us your requirements

We produce pulse picker system with repetition rate up to 100 kHz (HV pulse have the amplitude ~8kV with duration 10 ns at level 10% of maximum).

Contrast ratio - >1000:1, optical transmission of pulse picker system - >87%, clear aperture – 7mm in diameter (other dimension on request), water cooling is required (flow ~3 l/min).



Components of a standard
pulse picker:


1) Pockels cell
2) Control and supply unit
3) Glan prism
4) Glan prism mount
5) Mirror mount
6) Mirror
7) Quarter-wave plate
8) Fiber
9) Fiber holder
10) AC power cord
11) Connection cable
12) Tube (6 m)

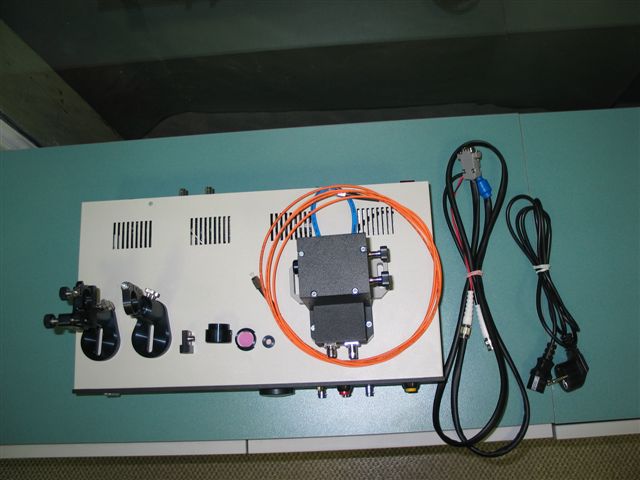

Components of Del Mar Photonics Pismo pulse picker

Pismo 88/1 Questions and Answers

> I choose the model 88/1, because it will provide us more freedom.

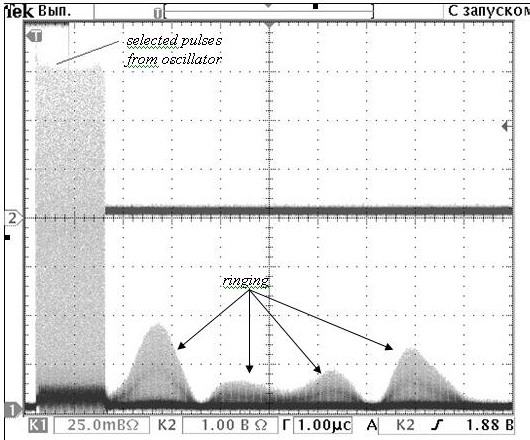

We use the BBO crystals in the Pismo 88/1 because its have very low piezoelectric ringing. But maximum clear aperture of BBO that we offer is 4 mm in diameter. This size is small for usage this crystal with 3mJ/100 fs pulses. Certainly we can offer you the Pismo 88/1 pulse picker with DKDP crystal with 9 mm clear aperture but in this case you will have ringing after selected pulses. This effect is important if you will use pulse picker for
selecting 20-100 pulses from femtotrain of oscillator (see, for example, picture in attached file). If you will use pulse picker after 1kHz amplifier
this effect is negligible.
Pismo 8/1 will be work fine with Spitfire (some our customers use this model with Spectra-Physics amplifiers for improvement ns-contrast ratio).
Pismo 88/1 is more expensive then Pismo8/1.

Questions about pulse picker for 1550 nm

>(1) Which Pockels crystal type will be suitable for 1550nm? Will it be AR coated for this wavelength?

DKDP crystals, ARC 1500-1600 nm.


>(2) Are polarising optics before and after the Pockels cell included in this system?
Yes.
Transmission loses:
DKDP crystal - ~10 %
Glan prism - 8% x 2 = 16 %
Total transmission of the pulse picker system is 70-75%.

Contrast - >1:3000.
Repetition rate - 500 Hz - 25 kHz.
Clear aperture - diameter 5 mm (please, inform if the more aperture will be needed).
Optical scheme - quarter-wave (see manual, l/4 setup).

>(3) Will it be possible to optically trigger the Pockels cell with a sample of the pulse train at 4 MHz?

Yes.

> Otherwise if we need to use our own detector, will it be possible to trigger using the detector output?

Yes, it's possible. But I think, that the most simple variant is to use fiber coupled detector built in Control Unit . ~50 pJ (maximum value) of
pulse energy is needed for stable device operation at repetition rate ~ 70-100 MHz, and <5 mW of average power for 80 MHz repetition rate.

>(4) Is water cooling required for the Pismo unit?

If you work with a repetition rate more than 10 kHz, it is important to chill the Pockels cell (using tube with 6mm outer diameter) with water flow
~ 3 liter/min.
