Variable Attenuator for Femtosecond laser pulses VAFS-ST
buy online
 |
Divides laser beam into two parallel beams of manually
adjustable intensity ratio
Low dispersion for femtosecond and high energy laser pulses
Large dynamic range
Negligible beam deviation
High Optical damage threshold |
|

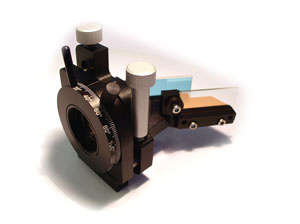

This variable attenuator/beamsplitter consists of 2
high-performance polarizing optics components placed in precision opto-mechanical
holder. The variable attenuator/beamsplitter incorporates 2 high-performance
Brewster type polarizers, which reflect s-polarized light while transmitting
p-polarized light. These two Brewster type polarizers are housed in
specially designed opto-mechanical adapter. This adapter allows to use round
shape or rectangular shape Brewster type polarizers.
A rotating quartz λ/2 waveplate is placed in the incident polarized laser
beam. The intensity ratio of those two beams may be continuously varied
without alteration of other beam parameters by rotating the waveplate. The
intensity of either exit beam, or their intensity ratio, can be controlled
over a wide dynamic range. P-polarization could be selected for maximum
transmission, or high-purity s-polarization could be reflected when maximum
attenuation of the transmitted beam takes place. |
 |
Specifications
| Central wavelengths |
780, 800, 1064 nm or other |
| Beam deviation |
40*10^(-6) rad, average over range |
| Aperture diameter |
20 mm |
| Damage Threshold |
1 J/cm2 pulsed at 1064 nm, typical |
| Antireflection Coating |
R <0.25% all entrance and exit surfaces |
| Time dispersion |
t<4fs for Ti:Sapphire laser pulses |
| Polarization Contrast (after 1st polarizer) |
1:190 |
| Polarization Contrast (after 2nd polarizer) |
1:7000 |
