The Yb-doped Tourmaline Yb-SS laser radiates at 1058±2 nm with more than 1 W of average power, and enables the user to enjoy Ti:Sapphire level power at over-micron wavelengths. This new design from Del Mar's engineers features an integrated pump diode module for greater system stability and turn-key operation. The solidbulk body of the laser ensures maximum rigidity, while self-starting design provides for easy "plug-and-play" operation.

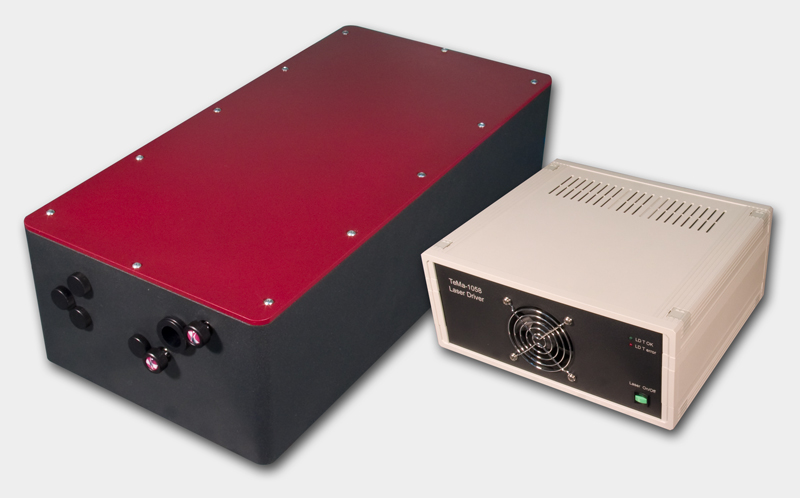

Tourmaline Yb-SS-1058/100 Femtosecond solid state laser system - request a quote
Ytterbium-Doped Femtosecond Solid-State Laser
Pulse duration (FWHM), fs: <100
Wavelength, nm (fixed): 1058±2
Average output power, W: >1.6
Repetition rate, MHz: 70
Pulse energy: >22 nJ
Pulse peak power: >0.22 MW
Output power stability: ±1%
Spatial mode: TEMoo
Polarization, linear: >100:1 (horizontal)
Dimensions:
Laser head dimensions, mm: 420x200x128
Power supply dimensions, mm: 290x125x260

Note: >100W@23 C closed-loop chiller is required for operation





Applications:

- Seed oscillator for amplifiers
- Multi-photon excitation microscopy
- Pump-probe spectroscopy
- Supercontinuum generation
- Generation of terahertz radiation
- Time-resolved spectroscopy
- Optical coherent tomography




Featured Products

Del Mar Photonics is your one stop source for ultrafast (femtosecond) as well as continuum wave (CW) narrow linewidth Ti:Sapphire lasers Trestles LH Ti:Sapphire laser
Trestles LH is a new series of high quality femtosecond Ti:Sapphire lasers for applications in scientific research, biological imaging, life sciences and precision material processing. Trestles LH includes integrated sealed, turn-key, cost-effective, diode-pumped solid-state (DPSS). Trestles LH lasers offer the most attractive pricing on the market combined with excellent performance and reliability. DPSS LH is a state-of-the-art laser designed for today’s applications. It combines superb performance and tremendous value for today’s market and has numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping. Trestles LH can be customized to fit customer requirements and budget.

Reserve a spot in our Femtosecond lasers training workshop in San Diego, California. Come to learn how to build a femtosecond laser from a kit


DPSS DMPLH lasers
DPSS DMP LH series lasers will pump your Ti:Sapphire laser. There are LH series lasers installed all over the world pumping all makes & models of oscillator. Anywhere from CEP-stabilized femtosecond Ti:Sapphire oscillators to ultra-narrow-linewidth CW Ti:Sapphire oscillators. With up to 10 Watts CW average power at 532nm in a TEMoo spatial mode, LH series lasers has quickly proven itself as the perfect DPSS pump laser for all types of Ti:Sapphire or dye laser.
Ideal for pumping of:

Trestles LH Ti:Sapphire laser
T&D-scan laser spectrometer based on narrow line CW Ti:Sapphire laser


New laser spectrometer OB' for research studies demanding fine resolution and high spectral density of radiation within UV-VIS-NIR spectral domains New laser spectrometer T&D-scan for research  that demands high resolution and high spectral density in UV-VIS-NIR spectral domains - now available with new pump option!
The T&D-scan includes a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter, an electronic control unit driven through USB interface as well as a software package. Novel advanced design of the fundamental laser component implements efficient intra-cavity frequency doubling as well as provides a state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser capable of covering together a super-broad spectral range between 275 and 1100 nm. Wavelength selection components as well as the position of the non-linear crystal are precisely tuned by a closed-loop control system, which incorporates highly accurate wavelength meter.

Reserve a spot in our CW lasers training workshop in San Diego, California. Come to learn how to build a CW Ti:Sapphire laser from a kit
