Del Mar Photonics offers new Pockels cell based on Rubidium Titanyle Phosphate – RbTiOPO4 crystal

Pismo Pulse Picker 8/1-RTP - request a quote

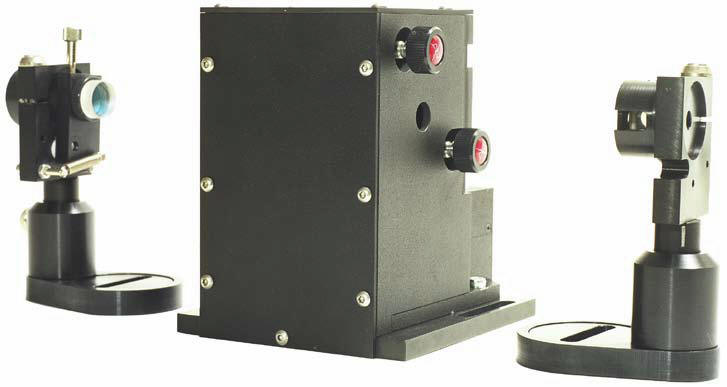

Pockels cell OG8/1-RTP with integrated HV generator - request a quote
Crystal: RTP, 6x6x10 mm3, ARC 1500-1600 nm (clear aperture – 5 mm)
HV pulse amplitude: up to 8 kV (HV pulse has the amplitude ~8kV with duration 10 ns at level 10% of maximum)
Repetition rate: 0 – 1 kHz (external or internal trigger)
Optical source rep.rate: 20-100 MHz
Optical synchronization input: optical (internal fiber coupled photodetector with 1.5 m length fiber)
System transmission: >80% @ 1000-1600 nm
Optical scheme: lambda/2
Contrast ratio: >1:1000

Also included:
Two polarizers with mounts
1.5-meter optical fiber for synchronization

The control system has USB interface and LabView-compatible software, as well as easy stand-alone controls.


Pockels cell OG10/1 with integrated HV generator



Pismo 10/1-8/1-RTP complete pulse picker system with two Pockels cells request a quote
Pismo pulse picker for laser wavelength: 1025~1045 nm

Pismo Pulse Pickers brochure - Pismo 8-1-1 manual - Del Mar Photonics







RTP single crystal (Rubidium Titanyle Phosphate – RbTiOPO4) is an isomorph of KTP crystal that has transmission range from 350nm to 4500nm and is used in nonlinear and electro optical applications.

request q quote for RTP single crystal
