X-ray tubes

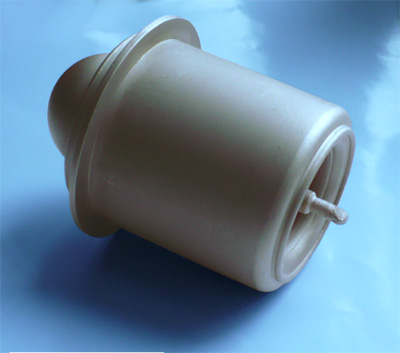

Metal-ceramic X-ray tube DMP-IRTP-240 has higher power and longer operation
time.
Pulse voltage amplitude on the tube, kW: 180 - 240
Focus spot diameter, mm: 3 ± 0.5
X-ray radiation exposure dose behind the steel barrier of 45 mm (average value),
R, not less: 30x10-3
Capacity, discharged on the tube, picofarad, not more: 50
X-ray flares’ repetition rate, Hz, not more: 10
Exposure time, sec: 60 ± 1
Warranty operation time, pulses: 107
Dimensions, d x 1 mm: 62.1 x 95
Mass, kg, not more: 0.4
request a quote - request a quote for development of custom X-ray tube
Other metal-ceramic products offered by Del Mar Phototics
Hydrogen Thyratrons - Deuterium Thyratrons - Untriggered Spark Gaps - Triggered Spark Gaps - Custom corundum and Forsterite Ceramics Products
