All prices are in US Dollars

Item

Qty

Part No.

Description

Price

1.0

 1

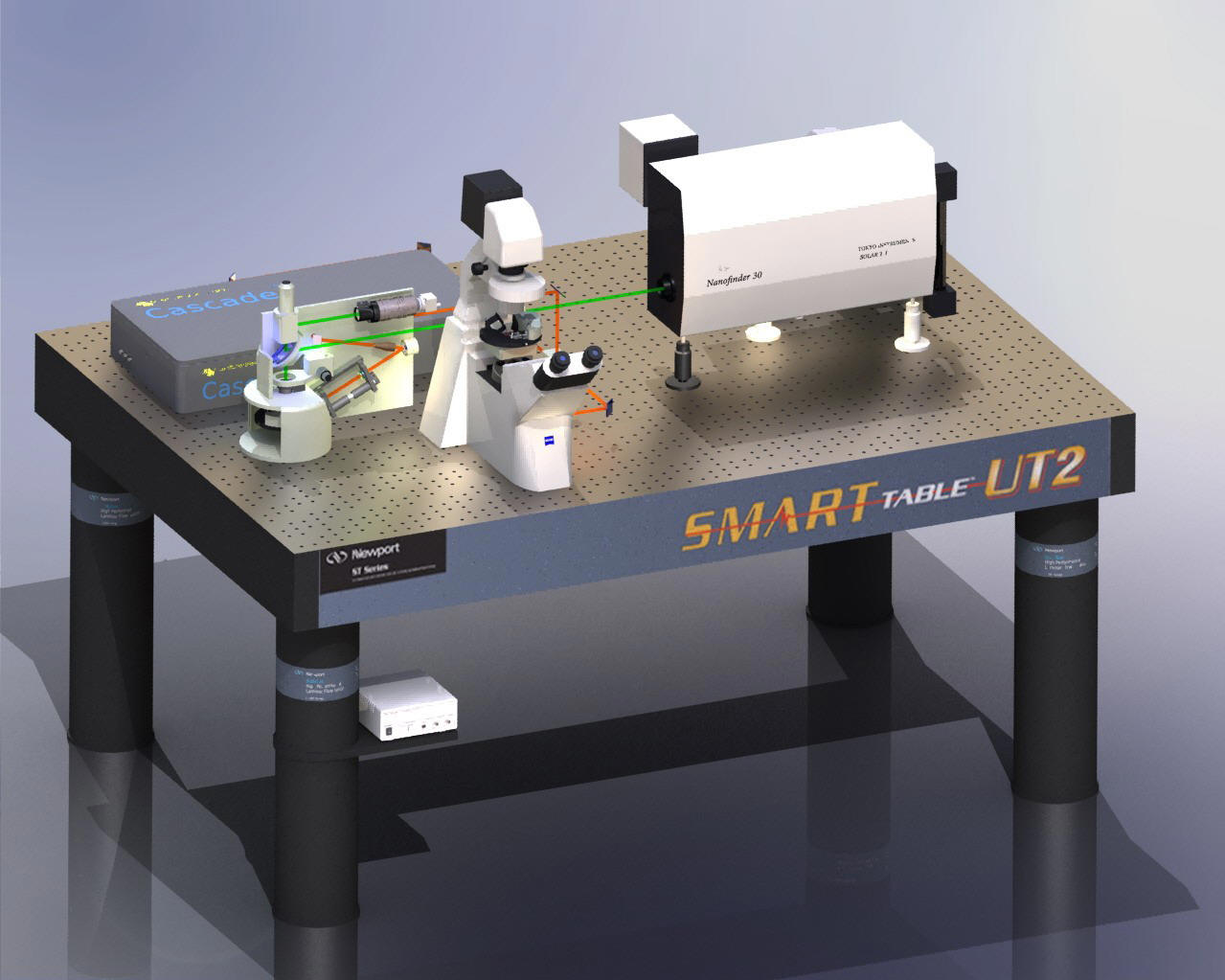

HeroN AFM - NanoRaman^TM  System  -- Reflection Configuration

Consisting of:

 1.1

HeroN SPM:

e-mail for a quote

   1.1.1

 1

HE001

HeroN SPM head.

Top/side optical access for external laser illumination:

    - Simultaneous top/side optical access for 0.28/0.42

      NA Mitutoyo objectives (10x/20x);

Fully automated laser and photodiode alignment.

Infrared laser 1300nm.

Registration system noise less than 0.03 nm.

Objectives are not included.

  1.1.2

 1

HE002

HeroN SPM head.

Top/side optical access for external laser illumination:

    - Simultaneous top/side optical access for 0.7/0.28

      NA Mitutoyo objectives (100x/10x);

    -Max. top objective 100x, 0.7 NA;

    -Max. side objective 20x, 0.42 NA.

Fully automated laser and photodiode alignment.

Infrared laser 1300nm.

Registration system noise less than 0.1 nm.

Objectives are not included.

  1.1.3

  1

LC001

HeroN Liquid cell

  1.1.4

  1

PI stage XYZ scanner (P-733.3CL). Scanning range: 100um x 100um x10um.

  1.1.5

  1

AP003-733

HeroN motorized approach system, fast and safe approach algorithm, XY head positioning compatible with Nikon TE-2000.

Sample positioning is provided by means of TE-2000. Compatible with P-733.3CL scanning stage.

 1.1.6

  1

S001

HeroN XYZ piezo closed loop scanner with capacitive sensors and flexible guides, scanning range 100x100x10 µm, nonlinearity < 0.1%, bidirectional repeatability < 10 nm.

  1.1.7

  1

AP001

HeroN motorized approach system, fast and safe approach algorithm.

XY sample positioning 5x5mm, positioning resolution 1 um.

Compatible with HeroN S001 scanner.

1.2

HeroN Light Input/Output system:

e-mail for a quote

  1.2.1

  1

MI001

HeroN Steering mirror, closed loop with capacitive sensors, tilt angle +/- 0.5º (+/- 8.7 mrad) for fine alignment.

  1.2.2

  1

IO003

HeroN Excitation light input-output unit  for transmission configuration on Nikon TE-2000

  1.2.3

  1

IO001

HeroN Excitation light input-output unit for reflection configuration, two Z piezo closed loop positioners for objectives, videomicroscope with 6x.

  1.2.4

  1

Objective M PLAN APO 100X NA 0.7

  1.2.5

  1

Objective M PLAN APO  20X NA 0.42

  1.2.6

  1

VM001

Video Monitor

1.3

HeroN controller and software:

e-mail for a quote

  1.3.1

  1

AI110

HeroN modular fully digital expandable controller,

high speed DSP 190 MHz,

USB 2.0 interface,

high speed 500 kHz 18-bit ADC, 20 channels,

5 MHz frequency range registration system,

2 lock-in amplifiers with 5 MHz frequency range,

8 digital 32–bit generators 5 MHz frequency range, 0.01 Hz resolution,

HV amplifiers -10 ÷ 110v, 2 ppm HV noise.

AC, DC Bias Voltage -50 ÷ 50v, 0÷2 MHz frequency range,

3 step motors control,

digital inputs/outputs for integration with external equipment,

analog inputs/outputs for integration with external equipment, no grounding loop.

   1.3.2

  1

AI111

HV board for PI stage. 3 channel for capacitive sensors and 3 HV amplifiers -10 ÷ 110v, 2 ppm HV noise. Compatible with P-517.3CL and P-733.3CL scanning stage, MI001 Steering mirror.

  1.3.3

  1

SW001

HeroN user friendly windows software, powerful data processing, pixel shadier 3.0 visualization,  macro language for user programmable front end interface dialog boxes, scripting language for real time DSP programming, availability to develop custom operation modes in addition to known range of AFM standard modes, including true non-contact mode and 3D scanning.

   1.3.4

  1

PC001

HeroN High performance computer with Windows XP operating system, Intel Core 2 Duo, 1GB RAM, 250GB HDD, CD R/W, 19 inch LCD monitor.

1.4

Spectroscopy module:

e-mail for a quote

   1.4.1

  1

Solar TII Optical-mechanical unit

   1.4.2

  1

Crystalaser RCL-080-785-S3, 785nm, 80mW

   1.4.3

  2

Semrock edge filter LP02-785RU-25

   1.4.4

  1

Semrock laser line filter LL01-785-12.5

   1.4.5

  1

COBOLT-SAMBA, 532nm, 25mW

   1.4.6

  1

Semrock notch filter NF01-532U-25

   1.4.7

  1

HeNe Laser, 632.8nm, 35mW (Melles Griot 25 LHP 928-230)

   1.4.8

  1

Semrock notch filter NF02-633S-25

   1.4.9

  1

Semrock laser line filter LL01-633-12.5

   1.4.10

  1

Andor DV420A-BV option-C1-AR1

   1.4.11

  2

Hamamatsu PMT module, H5784-04:

Spectral Response (nm) 185 to 920,

Frequency Response(kHz) 20,

Photosensitive Area(mm) 8 dia.,

Input Voltage (V) +/- 15

1.5

Included Accessories

e-mail for a quote

   1.5.1

  1

PS001

Set of cantilevers

   1.5.2

  1

Optical table (Newport)

   1.5.3

  1

CFI Plan Fluor 10X   N.A. 0.30, W.D. 16.0 mm

   1.5.4

  1

CFI Plan Fluor 100X C   N.A. 0.90, W.D. 0.3 mm

   1.5.5

  1

Inverted  Microscope Nikon TE-2000

List Price Total

 e-mail for a quote

Installation and Training  (10 days)

 e-mail for a quote

Estimated Shipping & Insurance

 e-mail for a quote
